INCH-POUND
MIL-DTL-24705/3A(SH)
23 August 2010
SUPERSEDING
MIL-P-24705/3(SH)
7 June 1990
DETAIL SPECIFICATION SHEET
PENETRATORS, MULTIPLE CABLE, ELECTRIC CABLE, ROUND FRAME, SQUARE-FACED BLOCKS
This specification is approved for use by the Naval Sea Systems Command and is available for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification sheet and
MIL-DTL-24705.
ROUND MULTIPLE CABLE PENETRATORS.
Round multiple cable penetrator assembly (figure 1). Components required for each complete round metal
frame multiple cable penetrator assembly specified by this specification sheet shall be:
a.
One round frame (see figure 2).
The appropriate round end-packing assembly, compression plates, and all hardware (see figure 3).
b.
c.
Square-faced cable insert blocks and blanking insert blocks to fill the interior of the round end-packing
assembly (see MIL-DTL-24705/1).
ROUND FRAME
END-PACKING
ASSEMBLY
BLANKING
INSERT BLOCK
CABLE INSERT BLOCK

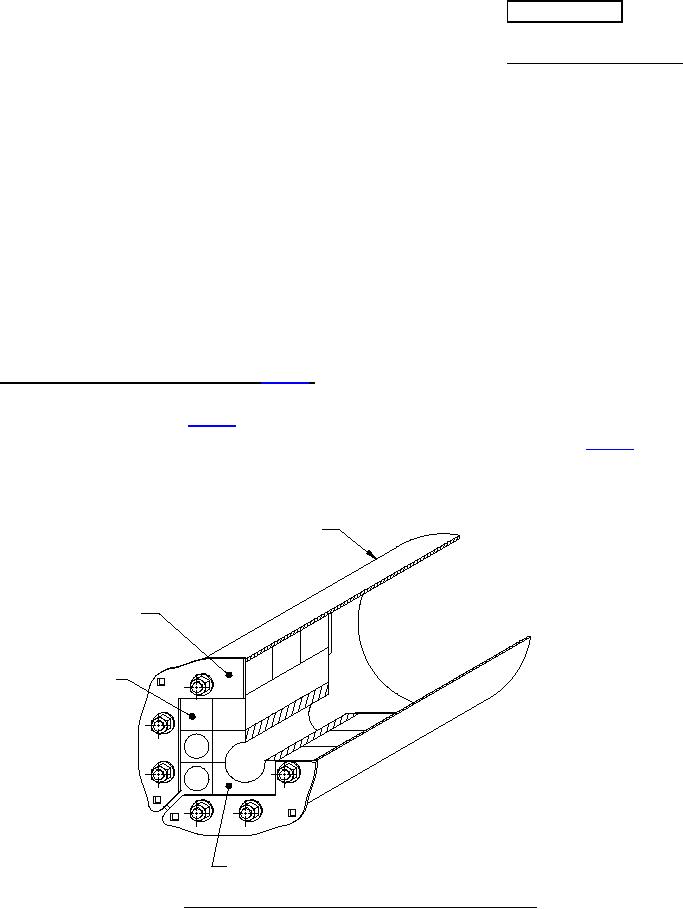

FIGURE 1. Round multiple cable penetrator, assembled view typical.
AMSC N/A
FSC 5975
