MIL-DTL-24705/3A(SH)

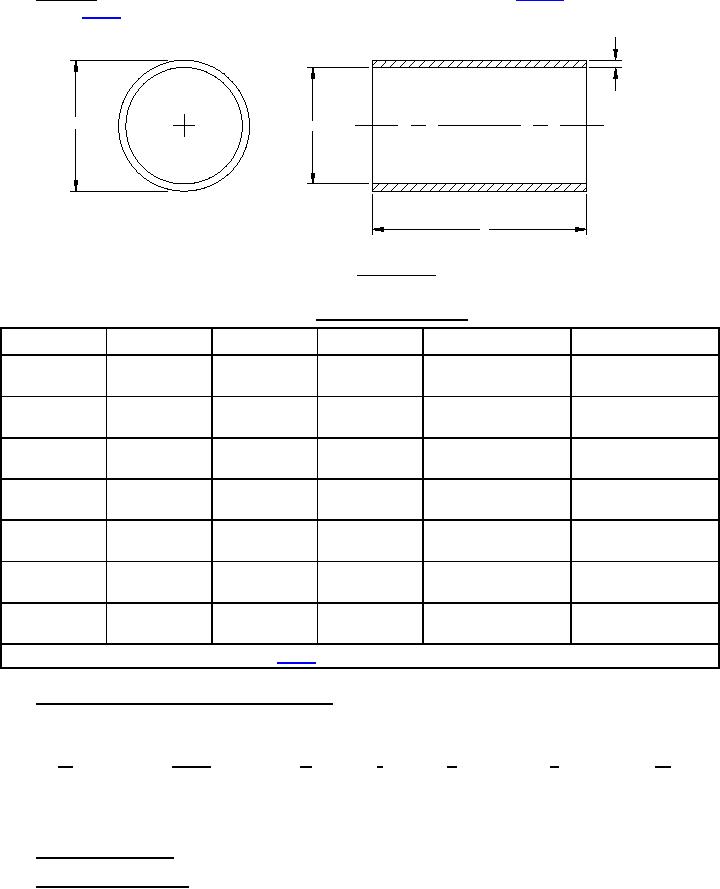

FRAMES. Round multiple cable penetrator frames shall be in accordance with figure 2 and the dimensions
specified in table I.
C
D
B
A
FIGURE 2. Round frame.
TABLE I. Round frame dimensions.
Designator
A (Deck)
A (Bulkhead)
B
C
D
See dimensions for
See dimensions for
F*70
305 (12.0)
102 (4.0)
74 (2.91)
round frame below
round frame below
See dimensions for
See dimensions for
F*75
305 (12.0)
102 (4.0)
79 (3.11)
round frame below
round frame below
See dimensions for
See dimensions for
F*100
305 (12.0)
102 (4.0)
103 (4.05)
round frame below
round frame below
See dimensions for
See dimensions for
F*125
305 (12.0)
102 (4.0)
129 (5.7)
round frame below
round frame below
See dimensions for
See dimensions for
F*127
305 (12.0)
102 (4.0)
131 (5.15)
round frame below
round frame below
See dimensions for
See dimensions for
F*150
305 (12.0)
102 (4.0)
154 (6.06)
round frame below
round frame below
See dimensions for
See dimensions for
F*200
305 (12.0)
102 (4.0)
203 (7.99)
round frame below
round frame below
NOTE: The asterisk (*) in the designator in table I represents the item material.
Part or identifying number (PIN) for round frame. Frames are differentiated by an item designation consisting
of one to three digits corresponding to a particular size. An example of a round frame PIN is provided below (see
MIL-DTL-24705 for complete details).
24705
/3
-
F
S
75
M
Item Material
Item
Prefix for Military
Specification
Spec Sheet
Item Type
Designation
Specification
Number
No.
Materials, round frame. The material shall be CRES (C) or steel (S) in accordance with MIL-DTL-24705.
Dimensions, round frame. Round frames shall be fabricated from pipe equivalent to American National
Standard schedule 40 or schedule 80 welded and seamless wrought pipe. Dimensions "C" (wall thickness) and "D"
(outside diameter) shall be equivalent to the dimensions for American National Standard schedule 40 or schedule 80
welded and seamless wrought pipe selected for the required application.
3
