MIL-DTL-24705/3A(SH)
END-PACKING ASSEMBLY. Round end-packing assemblies shall be in accordance with figure 3 and the
dimensions specified in table II.
BACK PLATES
B
C
PLAIN WASHER
FRONT PLATES
D THD. SIZE
E
ROUND HEAD SQUARE
NECK BOLT
A
HEX NUT
A

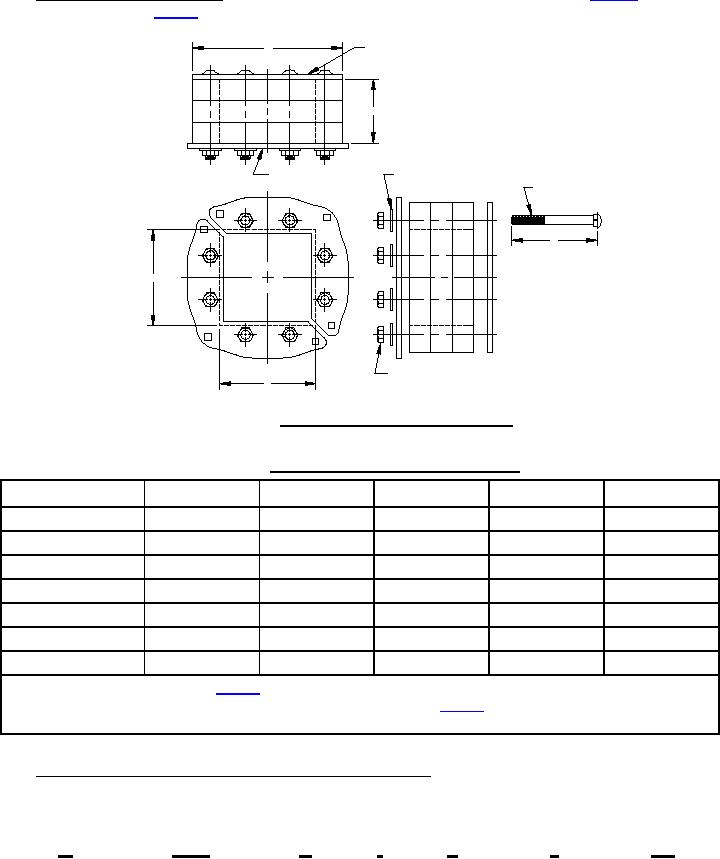

FIGURE 3. Round end-packing assembly (typical).
TABLE II. Round end-packing assembly dimensions.
Designator
A
B
C
D
E
J*70
40.0 (1.57)
70.0 (2.75)
66.0 (2.60)
0.250-20 UNC
85.7 (3.38)
J*75
40.0 (1.57)
75.0 (2.95)
66.0 (2.60)
0.250-20 UNC
85.7 (3.38)
J*100
60.0 (2.36)
100.0 (3.93)
66.0 (2.60)
0.250-20 UNC
85.7 (3.38)
J*125
80.0 (3.15)
125 (4.92)
69.0 (2.72)
0.312-18 UNC
88.9 (3.50)
J*127
80.0 (3.15)
127 (5.0)
69.0 (2.72)
0.312-18 UNC
88.9 (3.50)
J*150
90.0 (3.54)
150.0 (5.90)
69.0 (2.72)
0.312-18 UNC
88.9 (3.50)
J*200
120.0 (4.72)
200.0 (7.87)
69.0 (2.72)
0.312-18 UNC
88.9 (3.50)
NOTE: The J in the designator in table II represents the types of round end-packing assembly specified E, H, and
K (see MIL-DTL-24705). The asterisk (*) in the designator in table II represents the item material which
pertains to hardware only.
Part or identifying number (PIN) for round end-packing assembly. End-packing assemblies are differentiated
by an item designation consisting of one to three digits corresponding to a particular style. An example of a round
end-packing assembly PIN for a square block round frame packing assembly with steel hardware is provided below
(see MIL-DTL-24705 for complete details).
24705
/3
-
E
S
100
M
Item
Prefix for Military
Specification
Spec Sheet
Item Type
Item Material
Designation
Specification
Number
No.
4
