MIL-DTL-24705/1B(SH)
BLANKING INSERT BLOCK. Blanking insert blocks shall be in accordance with figure 11 and the
dimensions specified in table IV.
A
(2.362)
60.0
A

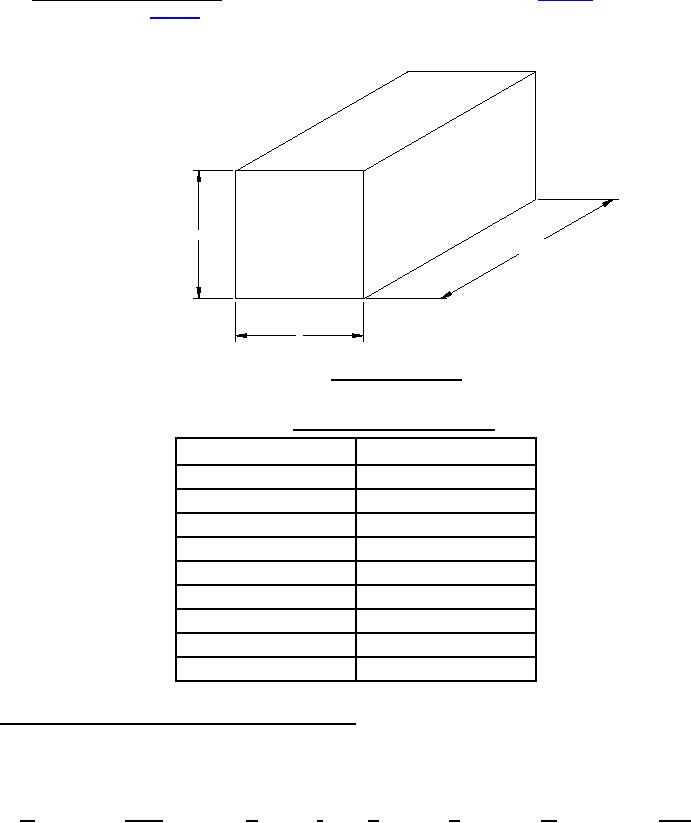

FIGURE 11. Blanking insert block.
TABLE IV. Blanking insert block dimensions.
Designator
A
BN10
10.0 (0.39)
BN15
15.0 (0.59)
BN20
20.0 (0.79)
BN30
30.0 (1.18)
BN40
40.0 (1.58)
BN60
60.0 (2.36)
BN80
80.0 (3.15)
BN90
90.0 (3.54)
BN120
120.0 (4.72)
Part or identifying number (PIN) for blanking insert blocks. The item designation for blanking insert blocks shall consist
of two or three digits that indicate the exterior width of the blanking insert block in mm. If the blanking insert block is
designed for a rounded corner, the item designation shall be followed by the item designation modifier "(RC)" to indicate a
rounded corner with radius equal to the exterior width. An example of a PIN for a 30 mm wide blanking insert block designed
for a rounded corner is provided below (see MIL-DTL-24705 for complete details).
24705
/1
-
B
N
30
(RC)
M
Prefix for
Item
Item
Item Designation
Specification
Spec Sheet
Item Type
Military
Material
Designation
Modifier
Number
No.
Specification
15
