INCH-POUND
MIL-DTL-24705/1B(SH)
23 August 2010
SUPERSEDING
MIL-P-24705/1A(SH)
19 July 1992
DETAIL SPECIFICATION SHEET
PENETRATORS, MULTIPLE CABLE, ELECTRIC CABLE, RECTANGULAR
METAL FRAME, SQUARE-FACED BLOCKS
This specification is approved for use by the Naval Sea Systems Command and is available for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the products described herein shall consist of this specification sheet and
MIL-DTL-24705.
RECTANGULAR MULTIPLE CABLE PENETRATORS.
Rectangular multiple cable penetrator assembly (figure 1). Components required for each complete rectangular
metal frame multiple cable penetrator assembly specified by this specification sheet shall be:
a.
One rectangular metal frame with associated hardware (see figure 2).
The appropriate end-packing assembly and compression plate and all hardware (see figures 3, 4, 5, 6,
b.
and 7).
c.
d.
Square-faced cable insert blocks, blanking insert blocks, and filler inserts to fill the interior of the
FRAME
COMPRESSION BOLT
END PACKING
ASSEMBLY
CABLE
COMPRESSION
PLATE
FILLER
INSERTS
STAY PLATE
BLANKING
BLOCK
CABLE
INSERT
BLOCK

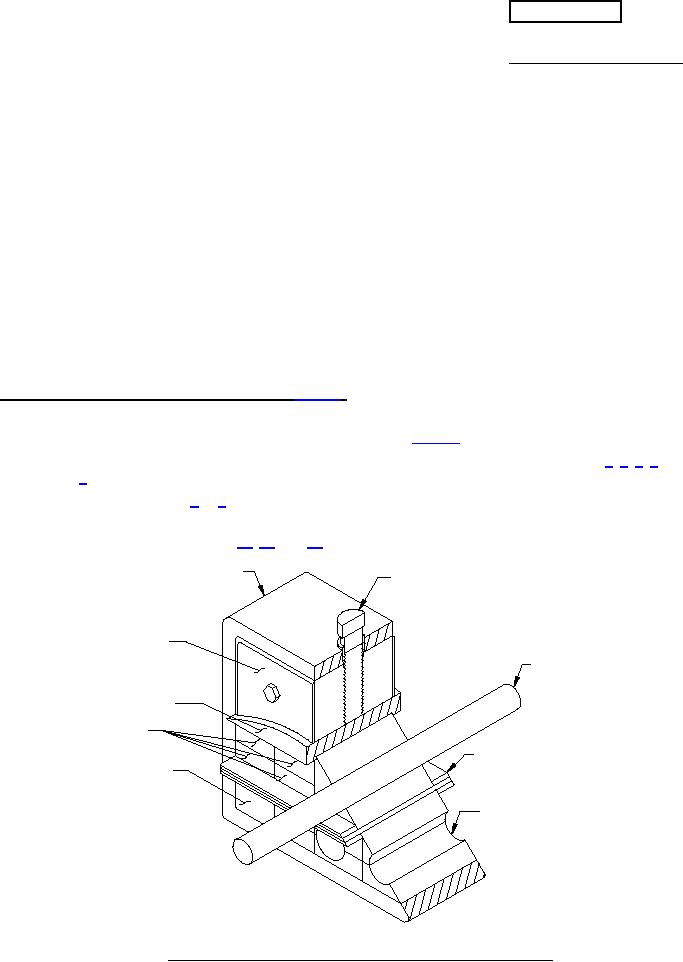

FIGURE 1. Rectangular multiple cable penetrator, assembled view typical.
AMSC N/A
FSC 5975
