MIL-DTL-24749B(SH)
See DETAIL B.
L
DETAIL B
END VIEW OF WIRE ROPE
NOTES:
Insert stranded wire through entire 1.5-inch length of CRES 316L pipe as shown in detail "A" before
1.
compression.
2.
Compress the end ¾ inch of the pipe to 0.20±0.025-inch thickness. Ensure both mounting surfaces of the lug
are smooth and flat, and burnish the tip.
Drill 13/32 inch (0.406 inch) ±0.010-inch hole in each lug to facilitate 3/8-inch bolts.
3.
All figure dimensions are in inches ±1/16 inch.
4.

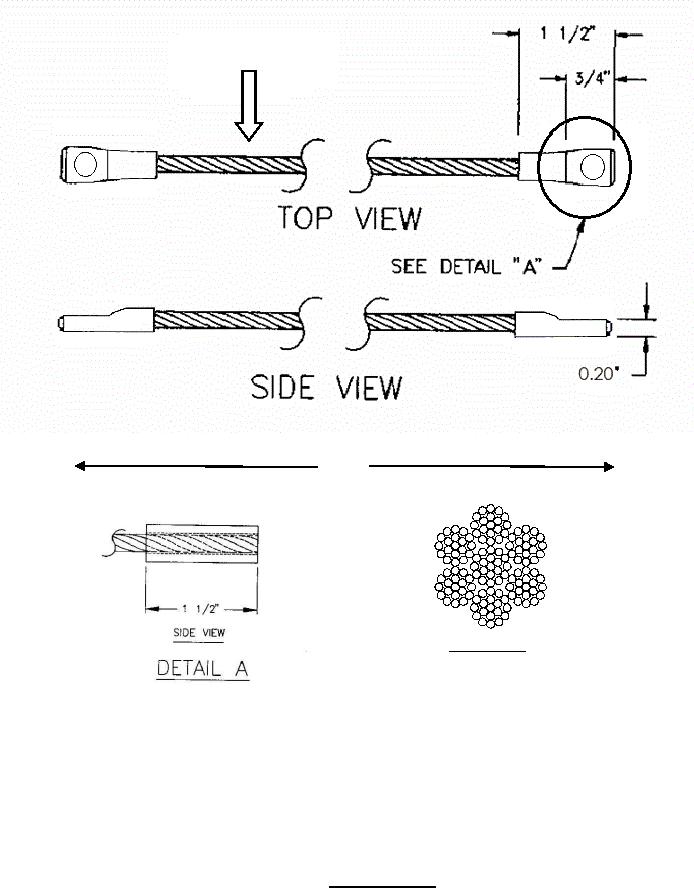

FIGURE 1. Type I bond strap.
13
