MIL-DTL-24749 Grounding Straps And Bosses, ElectromagneticThis specification covers the general requirements and tests for MIL-STD-1310 electrical grounding straps and welding studs, hereafter identified as bond straps and bosses.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18


. . . . .
MIL-DTL-24749B(SH)
NOTES:
1.
Length (L), width (W), and hole diameter (H) may be specified in non-standard sizes (see 1.3 and 6.2).
See table II for Type II and Type III bond strap standard sizes.
2.
3.
Unless otherwise noted in sections 3.2.3 or 3.2.4, all dimensions are in inches ±0.010 inch.

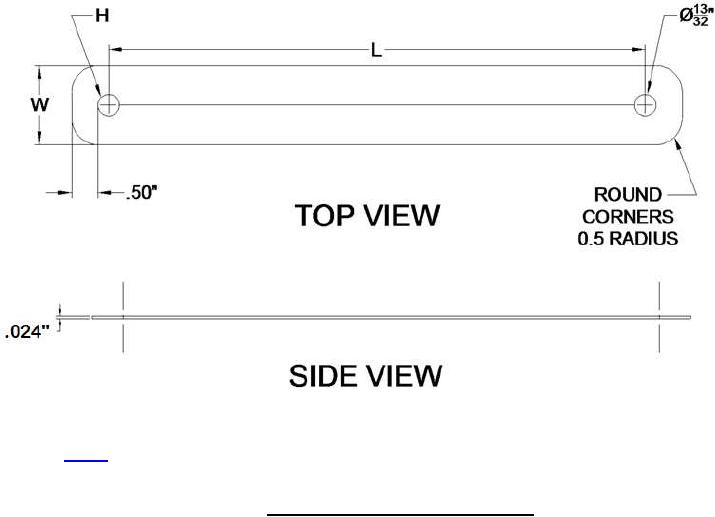

FIGURE 3. Type II and III bond strap fabrication details.
