MIL-DTL-24749B(SH)
NOTES:
1.
Bolt holes shall not penetrate through bond lines of bimetallic transition layer.
All dimensions, except machine threads, are in inches ±1/32 inch.
2.
3.
The manufacturer shall be responsible for design of boss weld ends that will provide a sound weld when used
with the proper ferrule for arc-welding (see MIL-S-24149/3), or for fillet welding.

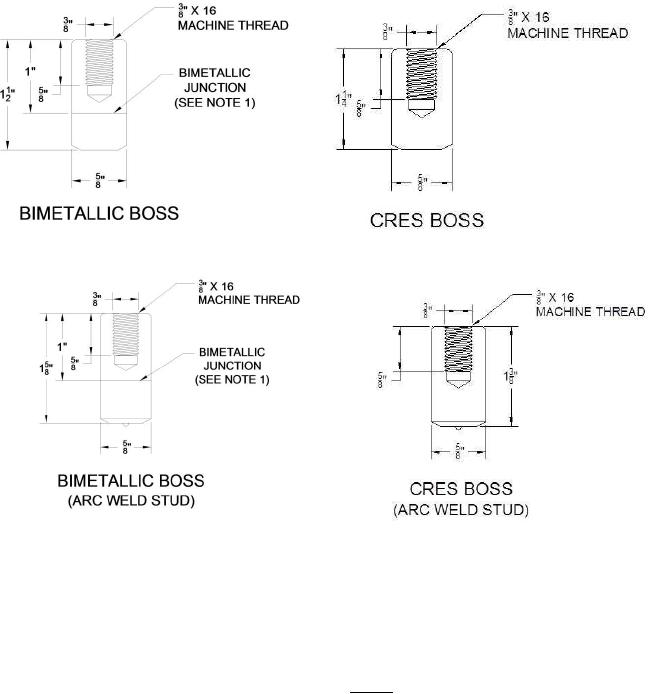

FIGURE 2. Bosses.
14
