MIL-DTL-24705/1B(SH)

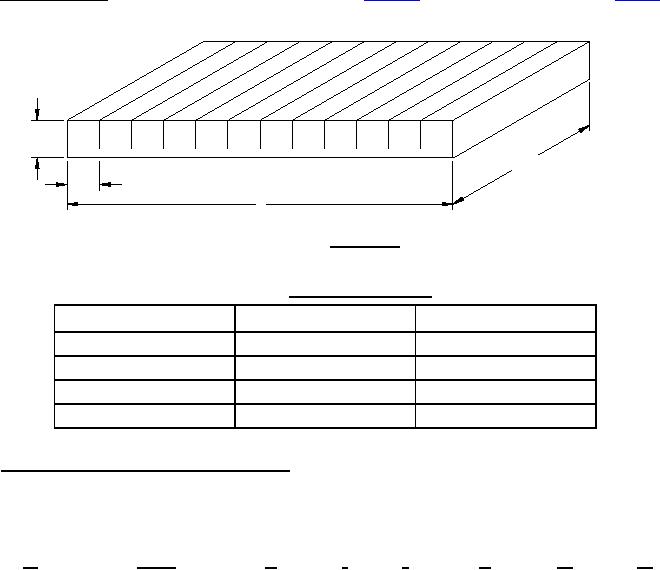

FILLER INSERT. Filler inserts shall be in accordance with figure 12 and the dimensions specified in table V.
B
(2.362)
60.0
B
A
FIGURE 12. Filler insert.
TABLE V. Filler insert dimensions.
Designator
A
B
IN0005
120.0 (4.72)
5.0 (0.20)
IN0010
120.0 (4.72)
10.0 (0.39)
IN1210
120.0 (4.72)
10.0 (0.39)
IN2405
120.0 (4.72)
5.0 (0.20)
Part or identifying number (PIN) for filler insert. The item designation for filler inserts shall consist of four
digits. The first two digits shall indicate the quantity of filler units provided in the filler insert piece, the last two
digits shall indicate the filler insert height. For solid filler inserts, "00" shall be used for the first two digits to
indicate a solid filler insert and the last two digits shall indicate the filler insert height. An example of a PIN for a 12
unit filler insert 10 mm high is provided below (see MIL-DTL-24705 for complete details).
24705
/1
-
I
N
12
10
M
Unit
Item
Prefix for Military
Specification
Spec Sheet
Units
Item Type
Height
Material
Specification
Number
No.
Item designation
16
